| Bluetooth |
|---|
| Logitech MX Anywhere 3 Bluetooth Mouse | Bluetooth. Press the small button until the light starts flashing. In Windows Settings connect Bluetooth device. |

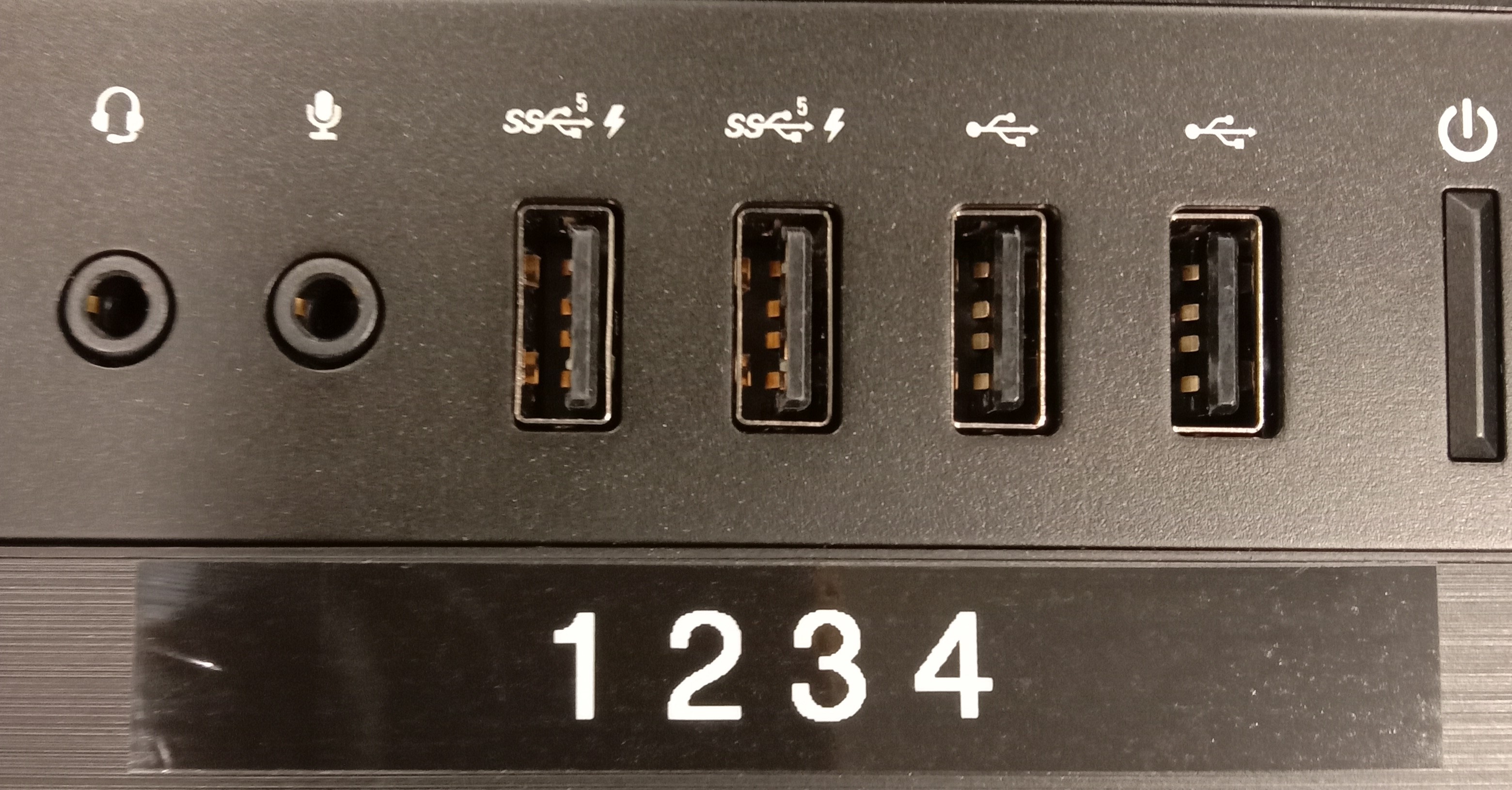

| My USB labels | Device |
|---|
| TOP |
|---|
| USB 1 Med | DVD |
| USB 2 Med | |
| USB 3 | |
| USB 4 | |
| Audio on Back panel |
|---|
| MiGPit Mk.VII: Audio routing |
| (pink) Microphone | Mike in | Levels are low... |
| (lime green) Audio OUT Line-Out, Front Speakers, Headphones | Y |
| (light blue) Audio stereo line IN | |

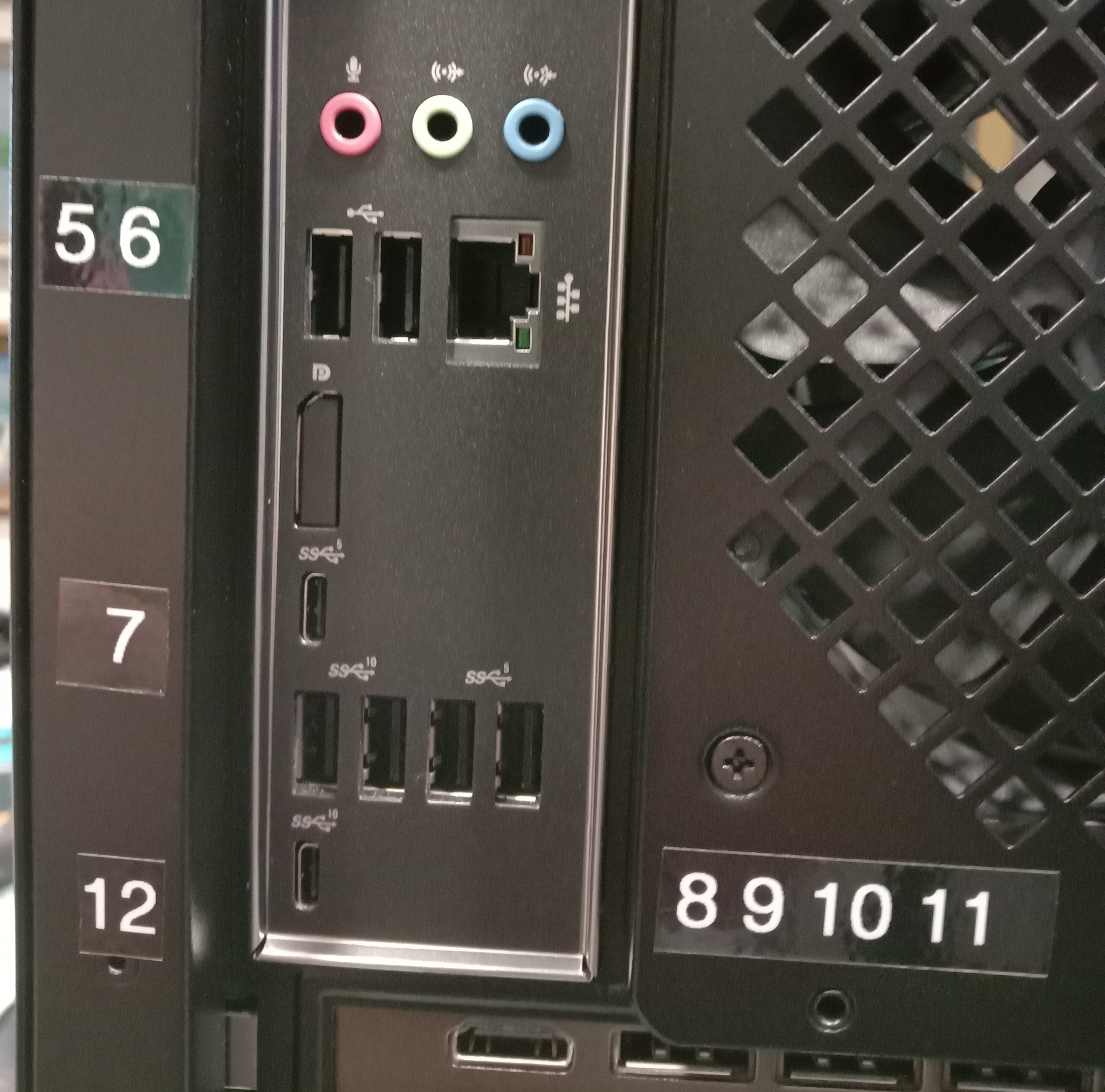

| USB on Back panel |
|---|
| USB 5 | KBD || Logitech G 512 Keyboard | sw: Logitech G Hub |
| USB 6 | |
| USB 7 Med || usb C || | |
| USB 8 Ultra | Wenter Powered USB 3.0 Hub |
| USB 9 Ultra | Elgato Stream Deck XL | Jan 5th 2025. See if this fixes the random 0-9 keystrokes when plugged into the slower USB 11 Med. Seems this is part of the softly spoken, nary a whisper black art of the Stream Deck. |
| USB 10 Med | |
| USB 11 Med | |
| USB 12 Ultra || usb C || | |
| Wenter Powered USB 3.0 Hub |
|---|
| Makes the task of updating firmware much easier. This hub's individual power buttons obviate the need to scramble around behind the computer and physically unplug then replug the devices during the firmware upgrades. |
| 1 | WINWING Combat Panel |
| 2 | WINWING TakeOff Panel |
| 3 | WINWING Orion Throttle |
| 4 | WINWING Orion 2 F-16 Stick v.1.08 | Orion Base 2 v1.13 |
| 5 | |
| 6 | |
| 7 | |
| 8 | TM Warthog Throttle |
| 9 | Thrustmaster Pendular Rudder |
| 10 | Track IR | Downloaded 5.3 drivers and activated with serial no. |
| Device | Drivers |
|---|
| Logitech G 512 Keyboard | Logitech G Hub |
| Mouse MX Anywhere | No drivers required, connect via Bluetooth, charge via USB C |
| Logitech MX Anywhere 3 Bluetooth Mouse |
|---|
| Make sure the mouse is turned on. The power switch is on the bottom of the mouse. |
| Press and hold the Easy-Switch button on the bottom of the mouse for three seconds until the LED light starts blinking quickly. |
| On your computer, open the Bluetooth settings. |
| Search for new devices and select MX Anywhere 3 to connect. |
