MiGPit Mk.VII

One year on and a look at the MiGPit Mk.VII, happily esconced in a TrakRacer TR160 chassis and re-engined with a HP OMEN 45L beast driving the sim.

The MiGPit Mk.VII was constructed at Xmas 2023 by installing the desktop components of the MiGPit Mk.VI onto a TrakRacer TR160 aluminium profile cockpit. A year later the pit is still evolving.

TrakRacer TR 160 simpit Hewlett Packard OMEN PC

The HOTAS was Thrustmaster Warthog and was replaced by the superb WINWING Orion unit some time in 2023.

WINWING HOTAS

From bottom left MFDs 1 to 5. These are Lenovo Android tablets.

MFD 1 at bottom left is running Sim Dashboard connected via WiFi to the Sim Dashboard server app on the sim PC. It has 5 pages which I constructed using the browser based Sim Dasboard studio.

Sim Dashboard MFD

Air Manager is running on the top 3 MFDs (MFD 2,3,4), connecting via WiFi to the sim.

Air Manager

MFD 5 at bottom right is running Firefox and connecting via WiFi to LittleNavMap which is running on my admin PC.

Little NavMap Lenovo

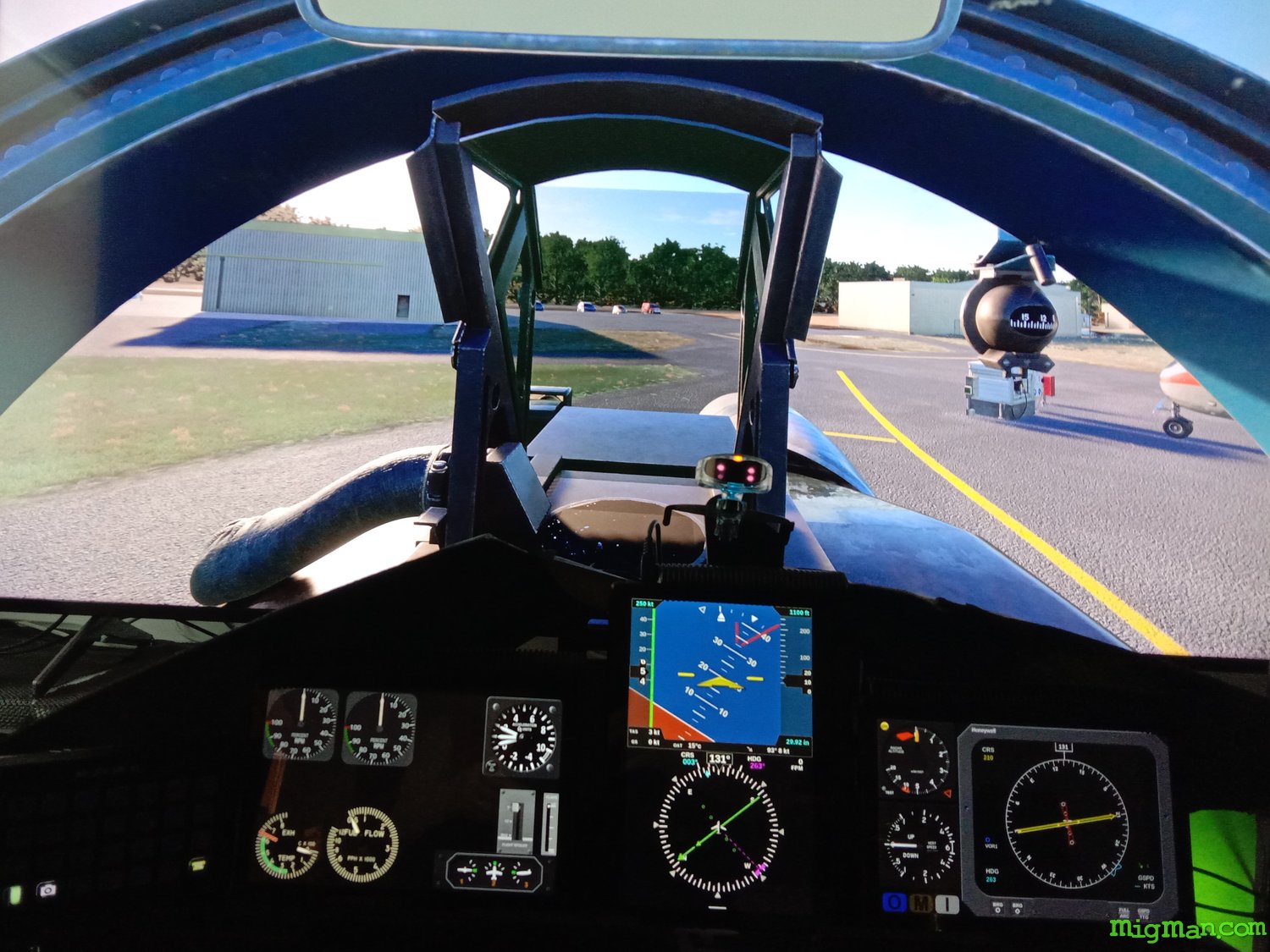

From the glare shield up you can see the Su-27 by Deimos in Microsoft Flight Simulator 2020.

Su-27 Flanker by Deimos

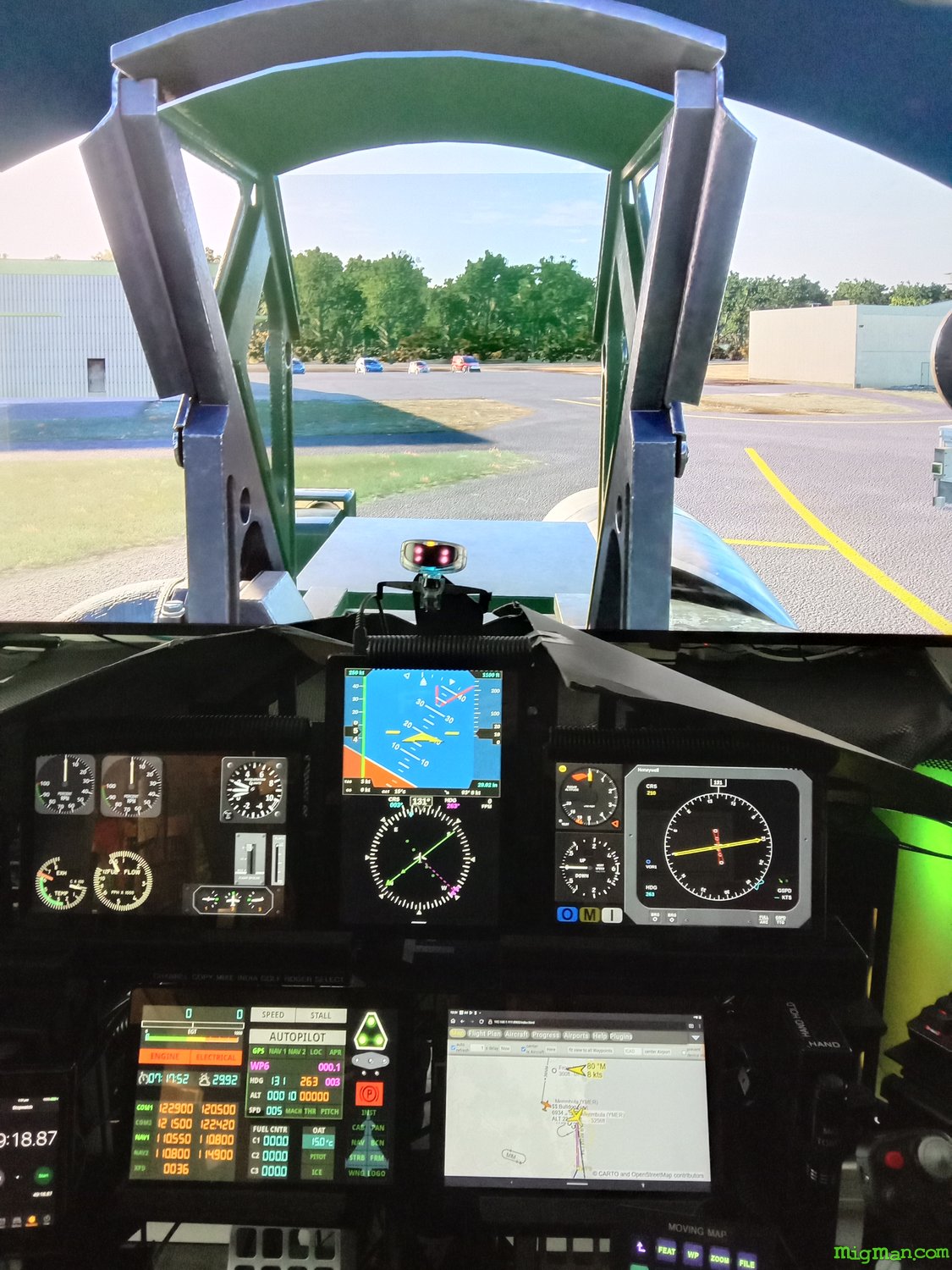

MFDs 1 to 5 and the Moving Map Control Panel at bottom right.

Close up of MFDs 2,3,4 running Air Manager.

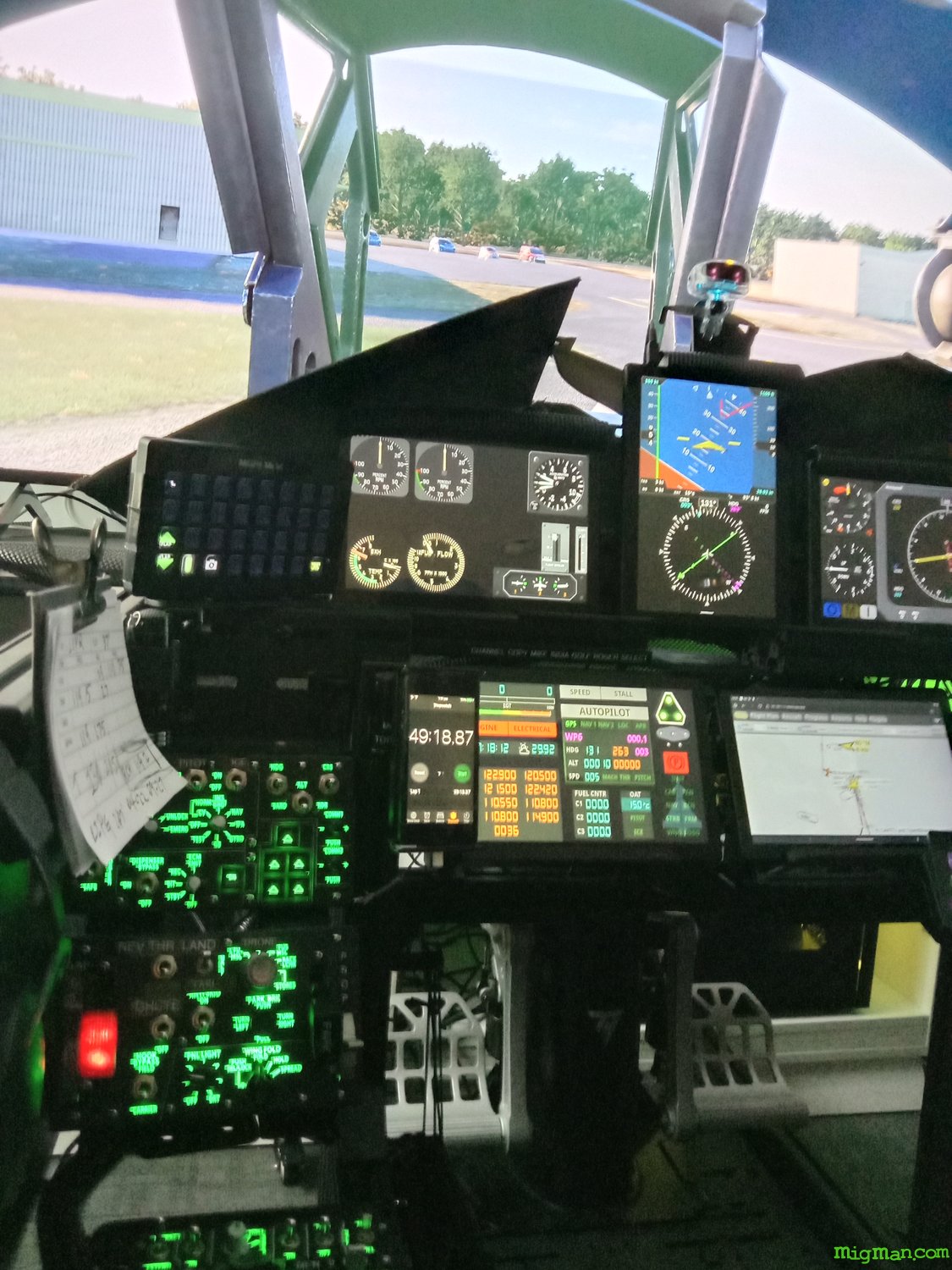

The left console is showing from the top: Elgato Stream Deck with numerous sub-pages, WINWING Combat Panel, WINWING Takeoff Panel and the forward edge of the WINWING Orion Throttle. You can see the Thrustmaster Pendular Rudder pedals at bottom centre.
